AI that extracts and generates fully dimensioned window, storefront, and curtain wall frames directly into Glazier Studio, PartnerPak, or GDS. No manual rebuilding.
Estimators are reading elevations and rebuilding frames by hand. On a complex storefront or curtain wall package, that work takes days before pricing even starts.
Estimators read each sheet, identify framed systems, and transcribe dimensions by hand. Every opening is a judgment call.
Each frame gets re-entered into Glazier Studio, PartnerPak, or GDS manually. Nothing carries over from the drawing set.
A missed mullion, wrong rough opening, or misread dimension doesn't surface until the shop or the field catches it.
Two to three days of frame setup on a hard-bid project kills your capacity. Shops miss bids or stretch estimators too thin.

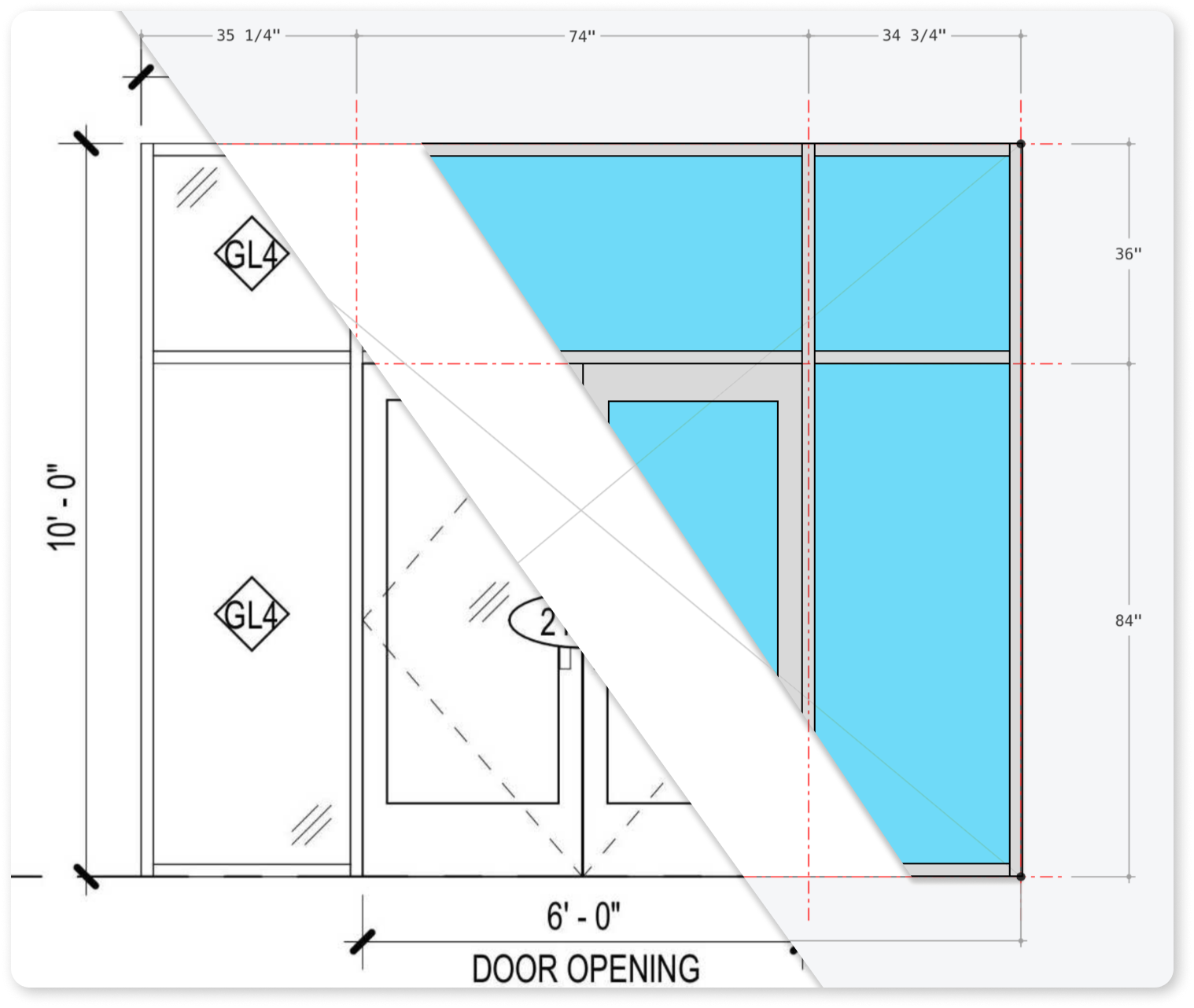

SHPX.ai reads your bid set, identifies framed systems, and builds structured frame outputs you can work with immediately.
The AI reads storefront, curtain wall, and window elevation sheets to locate and classify each framed unit within the drawing set.
Each opening becomes a discrete frame record: type, rough opening width and height, and position within the elevation layout.
Mullion spacing, sill and head heights, and frame relationships are carried through from the drawing rather than re-interpreted.
Frames are delivered in a format ready for Glazier Studio, PartnerPak, or GDS so your estimator starts with structure, not a blank screen.
Three ways to work with SHPX.ai, depending on your team's capacity and how much of the bid set you need covered.
Upload your elevation sheets and get structured frame outputs back. You review, adjust, and import into your system.
Send us the full bid set. Our team validates AI output against the drawings before you receive it. Delivered ready for estimating.
Full preconstruction support from scope identification through structured output. For shops that need to move fast on complex packages.
SHPX.ai outputs structured frame data in formats your team already uses. It is not a replacement for your estimating system. It is a faster starting point.
A 4-story mixed-use storefront package. 38 elevation sheets. Two stairwell entrances, corridor windows, and a curtain wall lobby.
Drop us one elevation sheet from a current bid. We'll return structured frames within 24 hours at no cost so you can see exactly what you'd be working with.
